The Engineering Behind the BikeCarGo Explorer
Our custom carrier is designed to leverage the unique, inherent geometry of a front-loader cargo bike. Because a front-loader already features an exceptionally low Centre of Gravity (CoG) and a remarkably wide kickstand stance, the bike itself provides the ideal stabilising platform.

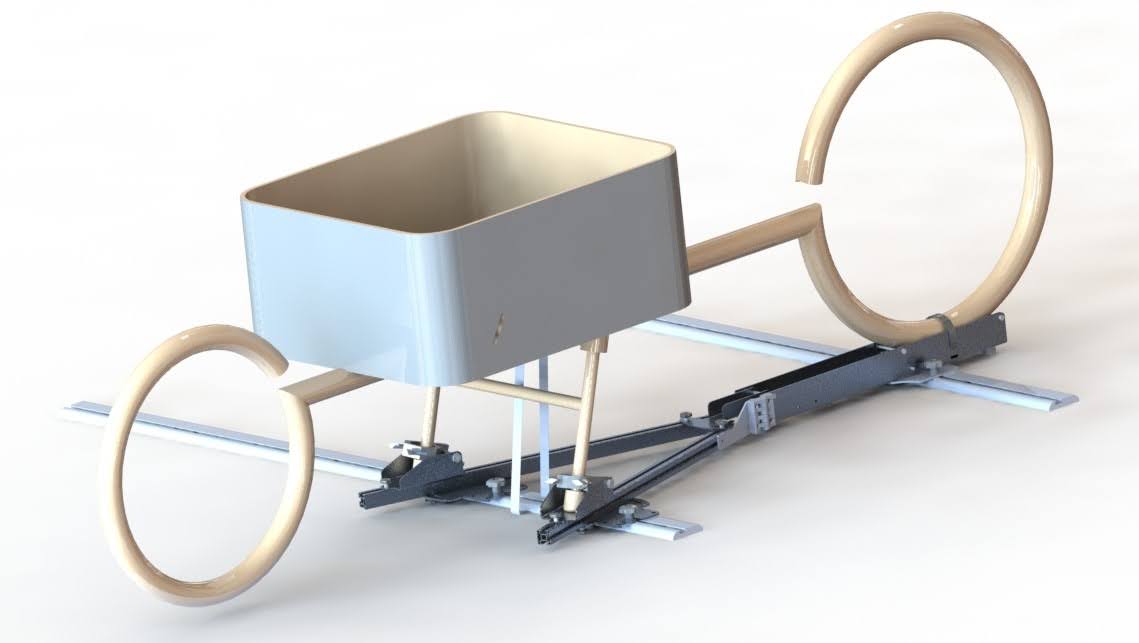

Our carrier simply follows this blueprint. It acts as a structural bridge, attaching to the bike's native wide tripod points (the two kickstand legs and the rear wheel) and transferring those loads directly down into the vehicle's roof rack, securing the bike against extreme dynamic forces.
For the engineering calculations below, we use the Riese & Müller (R&M) Load4 75 as our baseline example. When stripped down for transport (box sides, saddle, and battery removed), this bike weighs approximately 33 kg. The Explorer weighs 5.5kg, bringing the total weight of the mounted system to approximately 38.5kg. This is a relatively heavy cargo bike in comparison to lighter models like the Bullitt. By building our maths around a heavier model, we ensure our safety margins remain conservative for virtually any front-loader on the market.
The Bottom Line: What This Means for You
We know there is a lot of dense math and physics further down this page! But if you are putting an expensive, beloved cargo bike on the roof of your car, you deserve to know exactly why it is safe. Here is the simple translation of our engineering data:
- Over-Engineered: Our custom carrier and multi-point mounting system are designed to handle forces far beyond what you will ever experience on the road. Whether you are cruising at 100 kph or hitting a harsh pothole, the hardware has a Factor of Safety that ensures it won't stretch, slip, or fail.
- Leveraging the Bike's Own Stability: Front-loaders naturally have a super-wide kickstand stance. Our carrier simply grabs those native points and bolts them directly to your car's roof rack. We then complete the lockdown with a high-strength rear wheel strap and a tensioned ratchet strap that anchors the front of the bike frame straight down to the front roof rack bar. Working together, this multi-point, direct load path means the bike is virtually locked in place and won't budge during emergency braking, sudden swerving, or high crosswinds.
- Zero Risk to Your Bike Frame: It's natural to worry that applying tension to your cargo bike might bend or stress your frame, but your bike is perfectly safe. Our system anchors directly to the bike's structural core—the integrated lower frame and kickstand assembly. This entire section is factory-engineered as a heavy-duty load-bearing zone. In fact, the kickstand and its mounting hardware are specifically designed to endure massive shock loads every time you deploy the stand while the bike is fully laden with cargo and passengers. When the heavy-duty ratchet strap loops around the frame to apply downward tension, it simply compresses the chassis against this immensely strong, unified foundation that already handles hundreds of kilos of dynamic weight.
The Takeaway: You can load up quickly without any tools, hit the highway, and focus on the road ahead. Your cargo bike isn't going anywhere until you arrive.
Full Engineering Justification
1. System Mass & Weight Budget
The primary safety factor for any roof load is the dynamic weight capacity of the vehicle's roof and rack system. For our calculations, the example chosen is a typical family hatchback with a standard roof rack. If you need help verifying your load limit, see here.
- Car Roof Load Limit: 75 kg
- Total Payload: Stripped down Cargo Bike (33 kg) + Custom Carrier (5.5 kg) = 38.5 kg
Conclusion: The system utilizes only 51.3% of the vehicle's maximum roof load rating, leaving a massive margin of safety for dynamic loads.
2. Aerodynamics, Drag Force, and Torque
By removing the side panels, saddle, and battery, and stowing the handlebars, the frontal area (A) and aerodynamic drag are drastically reduced.
The drag force (FD) acting on the system at the maximum rated speed (62 mph / 27.7 m/s) is calculated using the drag equation:
FD = ½ ρ v2 CD A
With a conservative drag coefficient estimate, the Drag Force is approximately 188 N (roughly 19 kg of horizontal force).
Center of Pressure vs. Pitching Moment:
Because the cargo box belly is left intact but the sides are removed, the aerodynamic forces remain low. Assuming a Center of Pressure 0.4 meters above the rack, aerodynamic drag creates a pitching torque of approximately 75.2 Nm attempting to rotate the bike backward. The downward tension (measured at approx 250N) provided by the front ratchet strap perfectly counters this pitching moment, locking the frame to the front roof bar and neutralizing aerodynamic lift.
3. The Direct Load-Path Interface
To maximize strength, the carrier uses a direct load-path design. The attachment points on the top of the carrier sit directly above the mounting plates on the bottom, meaning forces transfer straight from the bike into the car's roof rack without generating bending leverage on the carrier itself.
A. The Primary Anchor: Tool-Free Kickstand Leg Clamps
Two custom aluminum clamps secure the kickstand legs. Hard rubber inserts protect the frame and provide a high coefficient of static friction (μ).
Ffriction = μ × Fnormal
The clamps are secured using four ergonomic M5 T-handles. Due to the mechanical advantage of the threads, firm hand-tightening easily generates approximately 12,000 N of combined clamping force. With a conservative friction coefficient of 0.5, the hand-tightened clamps provide 6,000 N of slip resistance.
The Direct Mount: Directly underneath these clamp locations, plates fasten the system to the car's roof rack using two M6 T-bolts per leg. In a severe 8G frontal collision, the bike generates a forward force of 2,590 N. Driven straight down through these localized bolts, the 6,000 N of friction resistance easily holds the 2,590 N crash load, yielding a Factor of Safety of 2.3—all completely tool-free.
B. The Pitch Arrestor: Front Ratchet Strap
Secured far forward on the frame, the ratchet strap's pre-tension creates a massive restorative torque against aerodynamic drag. In a rear impact, the bike generates a backward force. A standard 25mm tie-down strap (breaking strength > 8,000 N) easily holds this load.
C. The Rear Stabilizer: Rear Wheel Strap
The rear wheel carries roughly 13 kg of the bike's static weight. The rear wheel strap manages high-frequency vertical vibrations and G-loads, which can generate up to 2.5G of upward acceleration (approx. 319 N of force). Physical testing on a rig proved this strap exceeds 140 kg (1,373 N) of pull force without failure.
The Direct Mount: Just like the front mounts, the rear wheel tray is fastened directly underneath the wheel with two M6 T-bolts. Locking the rim into the holder completely prevents the rear of the bike from hopping, protecting the chassis from cyclic twisting loads.
4. Lateral Stability: Cornering, Crosswinds, & Yaw
While acceleration and braking create longitudinal (forward/backward) forces, driving also introduces lateral (side-to-side) and yaw (twisting) forces. The carrier's wide tripod design neutralizes these forces before they can destabilize the vehicle.
A. High-Speed Cornering (Roll Resistance)
When a vehicle takes a sharp turn or executes an emergency lane change, centrifugal force pushes the mass of the bike outward. A standard passenger vehicle generates up to 1.0G of lateral acceleration in an extreme swerve. For the stripped 33 kg bike, this generates approximately 324 N of lateral force.
Because the carrier utilizes the cargo bike's native wide kickstand stance, the lateral tipping pivot point is pushed outward from the centre to the kickstand legs. To tip the bike over, this lateral force would need to overcome the downward holding power of the kickstand leg clamp, the M6 roof-rack T-bolts (which possess tens of thousands of Newtons of tensile strength), and the front ratchet strap. This ratchet strap exerts an active, constant downward force of approximately 25 kg (~250N) and is rated to withstand 800kg (~8000N) in tension, acting as a heavy-duty anti-roll anchor. This combination of a wide track and downward clamping force geometrically prevents lateral rollover.
B. Heavy Crosswinds (Aerodynamic Side-Load)
By stripping the bike down to its tubular frame where possible, the lateral aerodynamic profile (side-facing surface area) is greatly reduced. Sudden highway crosswinds pass through the open frame keeping side-loads at a minimum.
C. Yaw Prevention (Anti-Twist)
Yaw is the tendency of the bike to twist around its vertical axis—for instance, if a localized gust of wind hits the front of the bike but not the rear. To twist the bike, one kickstand leg would have to slide forward inside its clamp while the other slides backward.
Our tool-free kickstand clamps generate 6,000 N of friction slip resistance. Because these clamps are spaced kickstand width apart, they act as a massive "anti-yaw" mechanical lever. The twisting forces generated by real-world crosswinds are only a tiny fraction of what is required to break this friction grip. Combined with the tensioned front ratchet strap and the securely held rear wheel, the bike's chassis is locked into perfect alignment with the car.
5. Dynamic G-Loading & Hardware Safety Factors
Automotive roof rack standards, such as the industry-standard ISO 11154 "City Crash" test, require roof load carriers to withstand severe G-forces—typically an 8G to 12G frontal impact—without catastrophic failure. Using Newton's second law (F = ma), we calculate the exact loads the BikeCarGo system generates during these standardized crash tests to determine our estimated Factor of Safety (FoS).
When judged directly against these rigorous automotive safety benchmarks, the BikeCarGo carrier's direct load-path design vastly outperforms standard consumer bicycle racks.
FoS = Maximum Capacity ÷ Maximum Expected Load
| Component | Max Expected Load | Working Capacity | FoS | Engineering Note |
|---|---|---|---|---|
| Roof & Rack System | 38.5 kg (Total Mass) | 75 kg (Limit) | ~ 1.9 | Safely within standard vehicle roof rail dynamic limits for normal operation. |
| M6 T-Bolts (To Roof) | 3,021 N to 4,531 N (8G to 12G City Crash) |
~ 46,000 N (6x bolts combined shear) |
> 10 to 15 | Judged against maximum ISO 11154 crash standards, these are vastly over-engineered. |
| M5 T-Handles (Clamps) | 944 N (2.5G Vertical Bounce) |
~ 25,000 N (4x bolts tensile) |
> 25 | Ergonomic T-handles make it easy to hand-tighten to high friction levels, easily absorbing extreme vertical shock loads. |
| Front Ratchet Strap | ≈ 433 N (Drag + Pre-tension) |
> 8,000 N (Breaking strength) |
> 16 | Provides massive redundancy against aerodynamic lift and prevents pitch-back during rear impacts. |
| Rear Wheel Strap | ≈ 319 N (2.5G Bounce) |
> 1,373 N (Rig tested) |
> 4.3 | Physically verified to overpower vertical road impact forces, locking the rear chassis down. |
6. Frame Safety & Vibration Fatigue
Cargo Bike Frame Assessment Under Extreme Loads
A common question is whether strapping a bike down this tightly—and holding it by the kickstand—will bend the frame or shear the bike's own kickstand bolts.
- The Strongest Node: On a front-loader, the bottom bracket and kickstand mounting plate—along with the heavy-duty factory bolts that attach the kickstand to the frame—form the most over-engineered assembly on the bicycle. This hardware is specifically designed to withstand the immense leverage and shear force of hoisting a fully loaded, 200+ kg bike onto its stand day after day.
- Structural Integrity Under High Dynamic Loads: Clamping the carrier to the kickstand legs utilizes this native strength. Subjecting a stripped, 33 kg frame to high dynamic loads in this setup actually places less shear stress on the kickstand bolts and less bending force on the frame tubing than simply parking a fully laden cargo bike or riding the bike fully loaded down a bumpy road. The frame will not bend, and the factory kickstand bolts will not shear.
Vibration, Frequency, & Fatigue
By relying on the cargo bike's native wide tripod stance and securing those points directly to the roof rack with rigid M6 T-bolts, system stiffness is drastically increased. This pushes the natural frequency of the loaded carrier well above typical low-frequency road inputs (1–15 Hz). Furthermore, the hard rubber inserts in the kickstand clamps act as viscoelastic dampers, absorbing micro-vibrations and preventing the hand-tightened T-handles from vibrating loose over time. Additionally, the tensioned front ratchet strap acts as an effective flexible dampener, absorbing and dissipating road shocks before they can propagate through the main chassis.
